CNN model on Iris images

Convolutional Neural Networks, like neural networks, are made up of neurons with learnable weights and biases. Each neuron receives several inputs, takes a weighted sum over them, passes it through an activation function and responds with an output.

The whole network has a loss function and all the tips and tricks that we developed for neural networks still apply on Convolutional Neural Networks.

Let’s train a network to classify images from the iris image dataset using a Convolution Neural Network built-in TensorFlow.

Dataset:

Now unzip the dataset in colab:



The dataset divided into three folders as Setosa, Versicolor, and Virginia( below image):

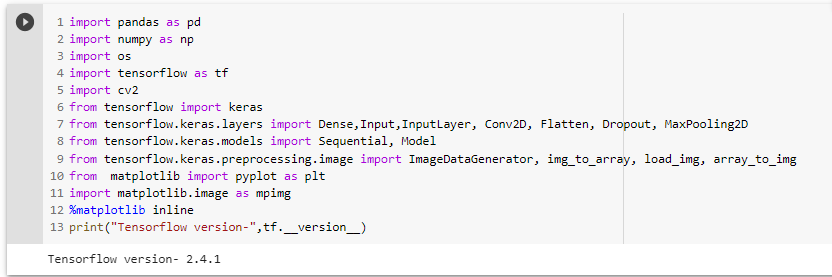

Importing Libraries:

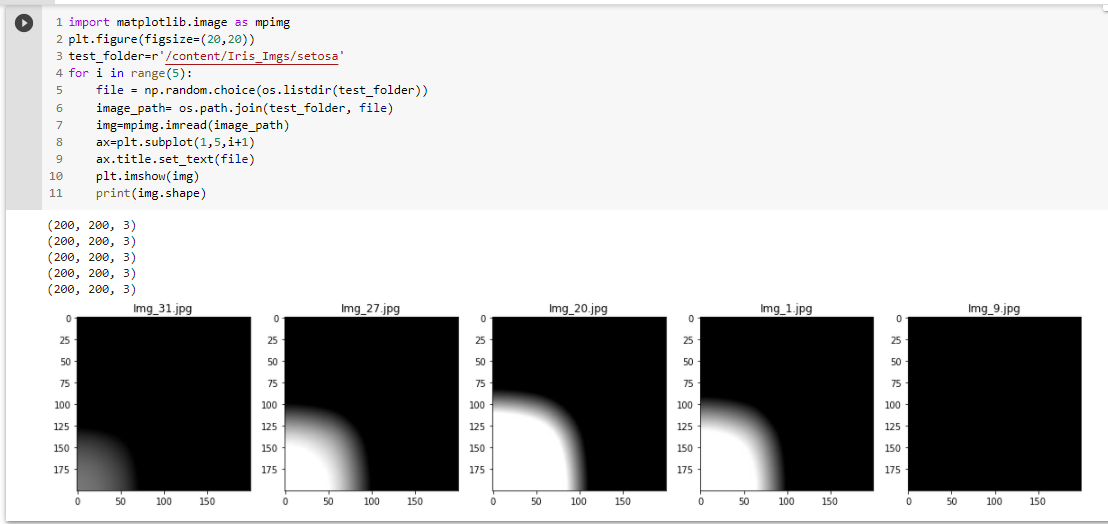

Plotting Images randomly from any folder:

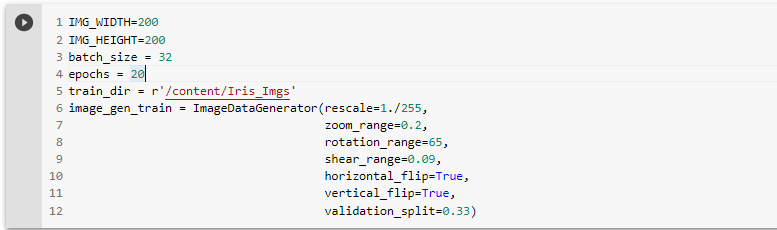

Tensor image data with real-time data augmentation:

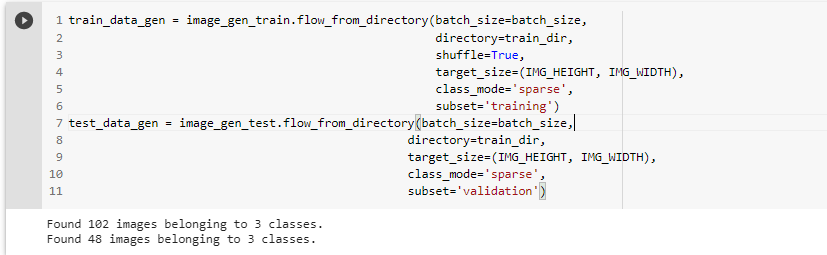

Train data and Validation Data creation:



Model Building:

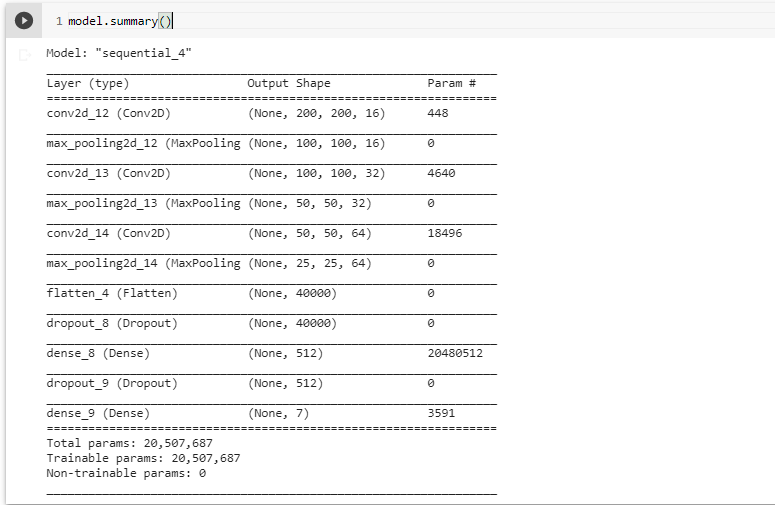

Model Summary :



Fitting the Model:

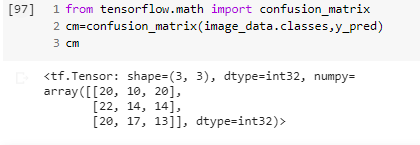

Confusion Matrix:





Future improvements :

Applying pre-trained models like Vgg-16 or modifying the CNN model.
